Future-proof 24V LED controllers with Matter-over-Thread and Zigbee dual-tech support. Choose RGB + Tunable White (MT-LEDRGBW24-V1) or Tunable White CCT-only (MT-LEDCCT24-V1) for professional smart-lighting installations.

Key features:

Matter over Thread certified — native integration with Matter ecosystems (Apple Home, Google Home, Amazon Alexa) when using a Thread border router.
Zigbee dual-tech compatibility — supports Zigbee remotes, wall panels and legacy Zigbee devices for backwards compatibility.
Designed for 24V constant-voltage LED strips (professional cove, cabinet and architectural lighting).
MT-LEDRGBW24-V1: 5 channels (RGB + WW + CW) for full colour + tunable white control.
MT-LEDCCT24-V1: 2 channels for precise tunable white (warm ↔ cool) control.
High PWM frequency for flicker-free dimming and smooth colour transitions.
Compact enclosure for discreet mounting inside profiles, cove channels or furniture cavities.
QR code/one-touch pairing, local firmware update support and app control for scenes, schedules and groups.

Why choose Modo LED controllers:

These controllers bridge professional LED hardware and modern smart homes. Use MT-LEDRGBW24-V1 when you need colour scenes + tunable white; choose MT-LEDCCT24-V1 for efficient warm-to-cool white control. Both models enable low-latency, reliable automation using Matter over Thread while keeping Zigbee compatibility for existing control hardware.

Typical applications:

Residential cove lighting, kitchens, feature walls and under-cabinet lighting
Hospitality rooms, corridors and accent lighting
Retail displays, reception desks and architectural profiles
Upgrades from Zigbee to Matter ecosystems while retaining existing remotes and switches

Installation notes:

Power: 24V DC constant voltage supply required — use a compatible LED power supply sized for total strip wattage.
Pairing: Enter pairing mode (see manual) and add to your Thread network or Zigbee controller as needed.
Control: Full on/off, dimming, white tuning (CCT) and RGB controls available from Matter apps and Zigbee remotes.
Indoor use only (install in dry enclosure). Follow wiring diagrams and local electrical codes.

Package includes:

Modo controller (select MT-LEDRGBW24-V1 or MT-LEDCCT24-V1)

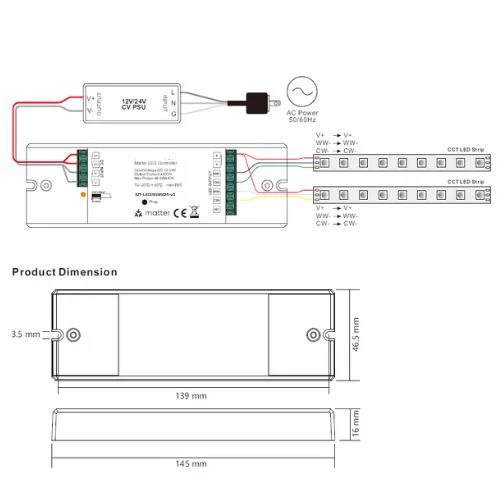

Quick start guide & wiring diagram
QR code for app pairing

Technical specifications (summary)

Weight: Not specified — refer to datasheet.
Dimensions: 145 × 46.5 × 16 mm (L × W × H) — typical compact profile for in-profile mounting.
Material: Plastic enclosure + PCB components.
Compatible model: MT-LEDRGBW24-V1 (RGB + Tunable White, 5-channel) / MT-LEDCCT24-V1 (Tunable White, 2-channel).
Filters lifetime: N/A (not applicable).
Input voltage: 24V DC constant voltage (supports 12–24V if your application requires; verify with datasheet for exact range).
Output current: Up to 4 A per channel (confirm exact per-channel limits in product datasheet).
Operating temperature: –20°C to +50°C (typical).
Enclosure rating: IP20 — indoor use only.
Protocol: Matter (Thread), Zigbee.
